API

  1. Simpleflow Execution
  2. Flowoutput
  3. Register Custom Functions
  4. Extensibility
  5. Compile Script
  6. Function Permissions
  7. Register Functions at Context Level
  8. Cache Options
  9. Handle Parser and Runtime Errors
  10. Get Syntax Tree

Simpleflow Execution

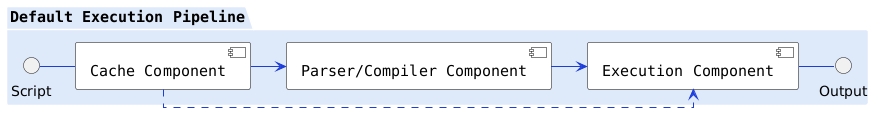

Simpleflow Pipeline

Sample code to create, build and run pipeline

// Build Pipeline to get full control over execution
ISimpleflowPipelineBuilder engine
    = new SimpleflowPipelineBuilder()
            // Add middleware services
            .AddPipelineServices(
                    new MyPreprocessor(),
                    new MyLoggingService());
            // Add core services - Cache, Compiler, Execution
            .AddCorePipelineServices(FunctionRegister.Default) // or
            /*
                 AddPipelineServices(
                    new CacheService(), //Cache uses Sliding window cache policy
                    new CompilerService(ActivityRegister.Default),
                    new ExecutionService());
            */
// Build
ISimpleflow flow = engine.Build();
// Run
FlowOutput result = flow.Run(script, new Member { Id = id});

FlowOutput

Emitters (message, error, output) produce output from script that will be available in FlowOutput object.

Register Custom Functions

FunctionRegister.Default
    .Add("DerivativeOfXPowN", (Func<int, int, int>)CalcDerivativeOfXPowN)
static int CalcDerivativeOfXPowN(int x, int n)
{
    return n *  Math.Pow(x, n-1); //
}

Extensibility

Create middleware and add it to pipeline.

public class LoggingService : IFlowPipelineService
{
    public void Run<TArg>(FlowContext<TArg> context, NextPipelineService<TArg> next)
    {
        // log here
        next?.Invoke(context);
    }
}

Compile Script

By adding only CompilerService to build a pipeline, script can be compiled and reported if there are any errors.

var engine
    = new SimpleflowPipelineBuilder()
        .AddPipelineServices(new Services.CompilerService(FunctionRegister.Default));
var simpleflow = engine.Build();
try
{
    simpleflow.Run(script, context);
}
catch(SimpleflowException exception)
{
    //Handle script errors
}

Function Permissions

By setting FlowContextOptions, you can permit specific functions to be executed.

 string script = @"
                    let d = $GetCurrentDateTime()
                    message d
                ";

var output = SimpleflowEngine.Run( script,
                                   new object(),
                                   new FlowContextOptions
                                       {
                                         AllowFunctions = new string[] {
                                                    "GetCurrentDateTime"
                                            }
                                       }
                                 );

Register Functions at Context Level

string id = "7bfd56c8ca354307b6cb9e0805a7ae4c";

var options = new FlowContextOptions {
    Id = id,
};

// Register additional function to this context only.
var funcRegister = new FunctionRegister();
funcRegister.Add("GetSysDate", (Func<string>)GetDate);
            .Add("GetCurrentDate", (Func<string>)GetDate);  // Override Default Function


FlowOutput result = new SimpleflowEngine.Run(script,
                                            new object(),
                                            options,
                                            funcRegister);

Cache Options

Specify cache options based on frequency of executing Simpleflow code. Cache options can be specified at Simpleflow builder level as well as running-context level. Recommend to set ID at FlowContextOptions level in order to avoid hashing.

string id = "7bfd56c8ca354307b6cb9e0805a7ae4c";

var options = new FlowContextOptions {
    // This will be used as cache key, if not specified then
    // it creates using hashing algorithm
    Id = id,
    // This allows to reset the cache entry if script needs to recompile
    // ResetCache = isModified
    CacheOptions = new CacheOptions {
                        AbsoluteExpiration = System.DateTimeOffset.Now.AddHours(1),
                        SlidingExpiration = System.TimeSpan.FromMinutes(3),
                        // Default it uses MD5
                        HashingAlgToIdentifyScriptUniquely = "SHA256"
                    }
};

FlowOutput result = new SimpleflowEngine.Run(script, new object(), options);

// isModified = false

Handle Parser and Runtime Errors

Handle parser/compilation/execution errors

try
{
    var result = new SimpleflowEngine.Run(script, ...);
}
catch(SyntaxException syntaxException)
{
    // syntaxException.Errors
}
catch(SimpleflowRuntimeException runtimeException)
{
    // runtime errors
    // runtimeException.LineNumber
    // runtimeException.Statement
}
catch(SimpleflowException exception)
{
    //any other compile time exception
}

Get Syntax Tree

v1.0.3

SyntaxTree st = Simpleflow.Ast
                    .SimpleflowScript
                        .GetAbstractSyntaxTree("<your Simpleflow script here>")

This API provides abstract syntax tree data structure of Simpleflow script. If there are any syntax errors, this method reports that error using SyntaxTree.Errors property.
